IDP Super Duty standard fuel system COMPLETE KIT (Includes regulated return) NOW WITH NEW BOSCH 464-200 PUMP, BILLET FILTER AND PUMP BASE!





  • $0.00
SKU: IDP-SDFUEL Categories: , ,

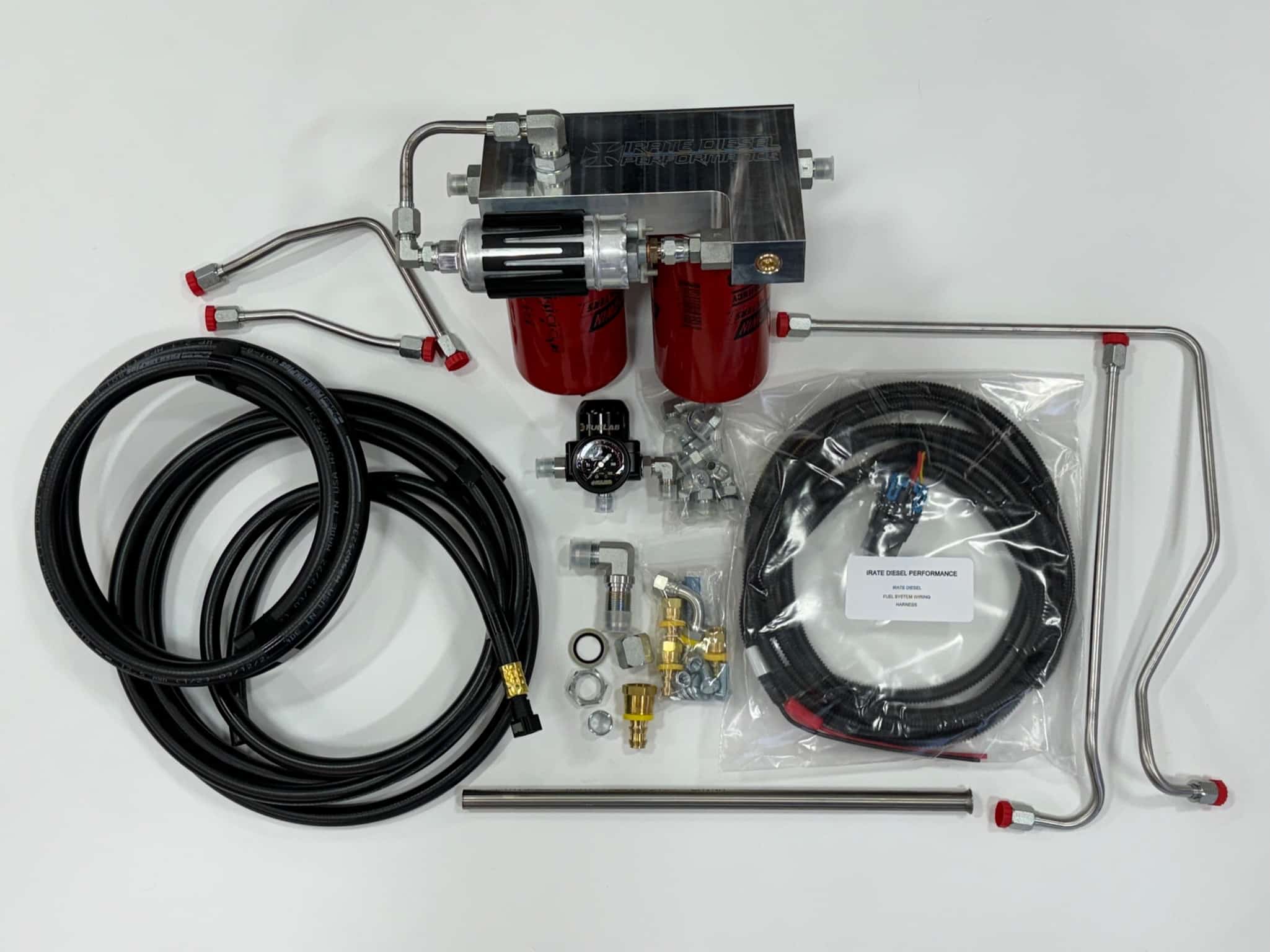

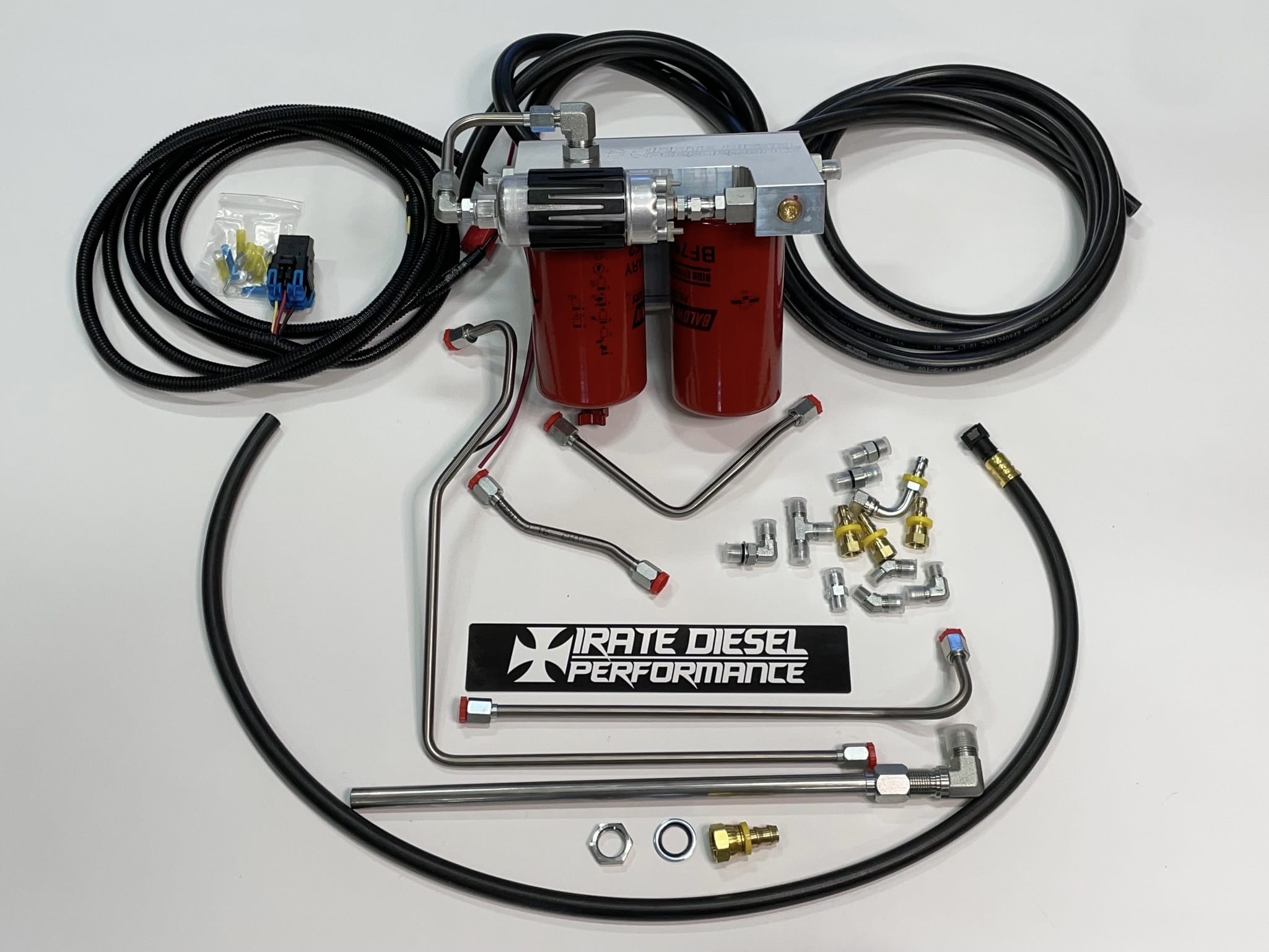

Irate Diesel Standard COMPLETE fuel system. 5/8″ pickup tube, Parker 801-10 line from tank to IDP 304ss fuel bracket, Baldwin filters NEW IDP BILLET filter base ,BOSCH 464-200 fuel pump, 801-8 line to motor, Irate regulated return with Fuelab regulator and liquid filled gauge, 801-6 return line and wiring harness.   System is complete  from the tank forward and gets rid of all those pesky fuel bowl leaks and in tank pick-up issues.  This system uses a water separator before the pump and a final filter after the pump to provide clean water free fuel going to your 7.3L!

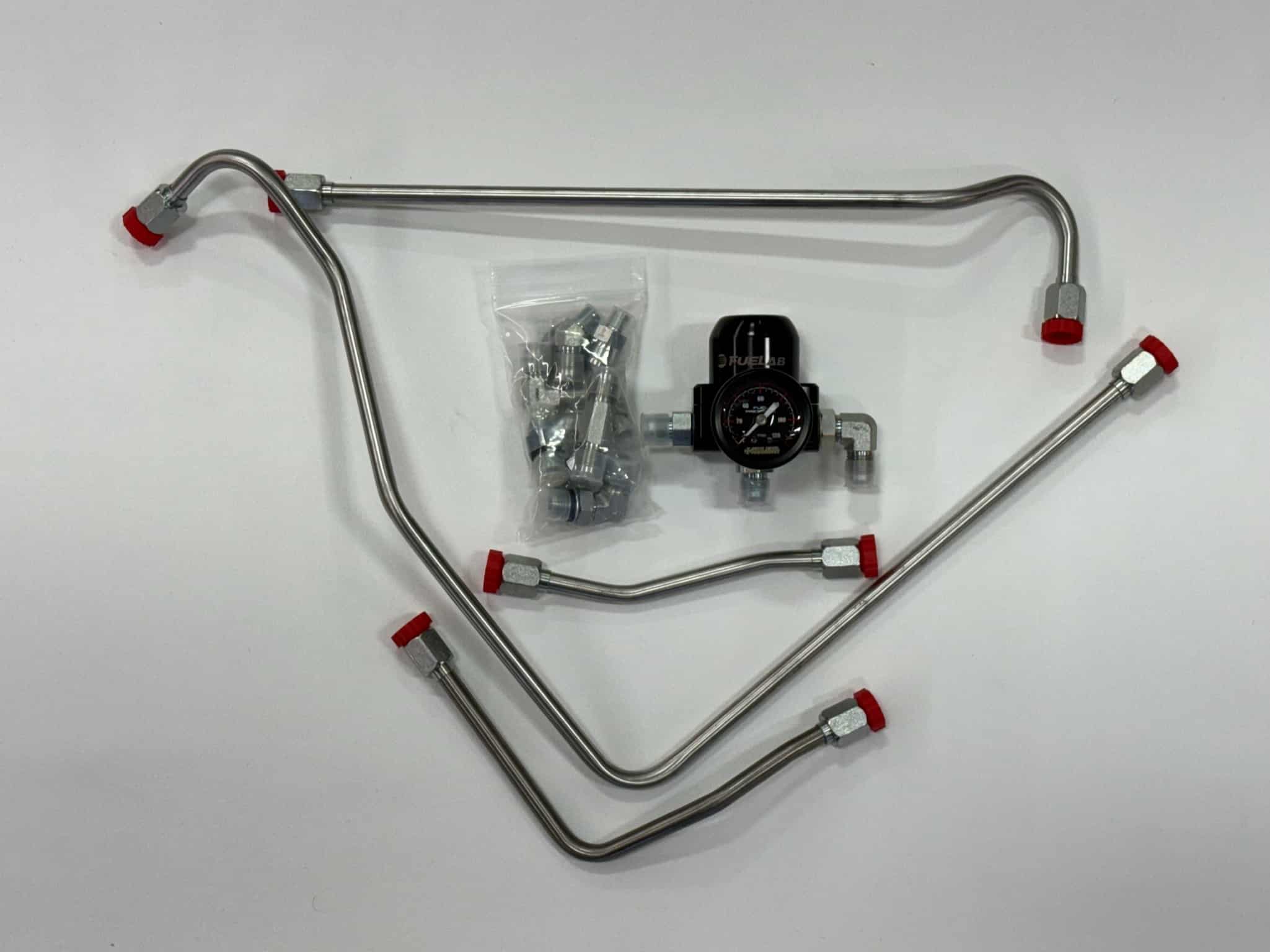

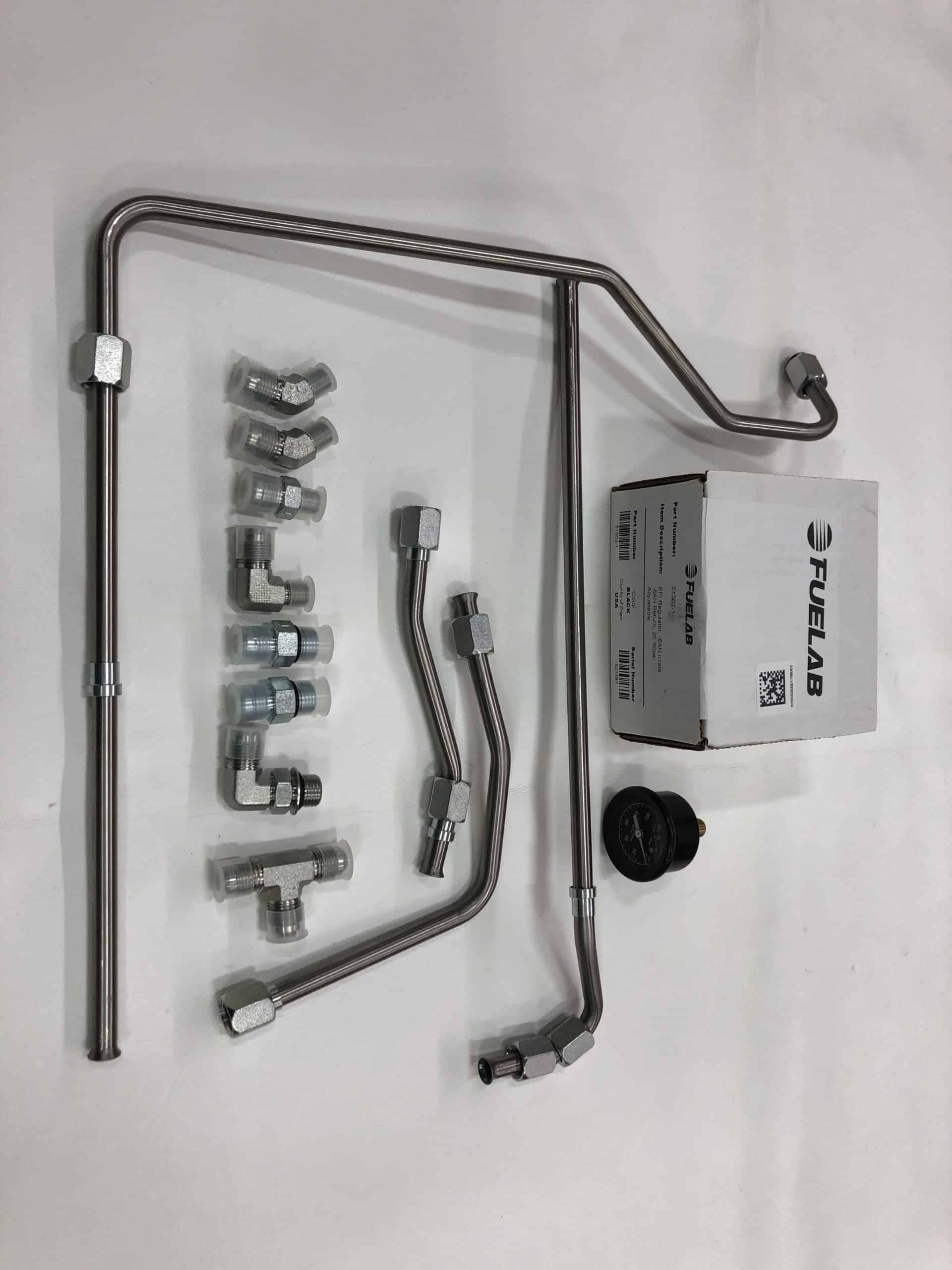

***Comes with our stainless steel hardline fuel bowl delete  Regulated return kit!!

This system will support up to a 250/200 injector or support 550-600RWHP.

In some instances you may have to remove the up-pipe on the drivers side to fit the new supplied 90* fitting but this is rare.

If you have a gen3 or BTS HPOP set up, please let us know in the checkout so we can bend you the correct lines to clear them.


Install instructions

Wiring instructions

Additional information

Weight 23 lbs
