Great for compound set up!

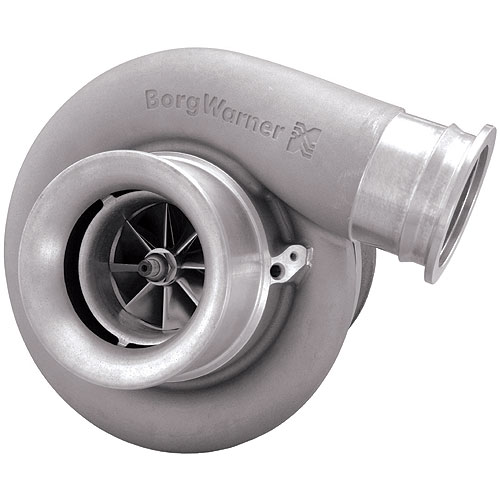

 BorgWarner S500SX- 88mm with high flow compressor cover

Rated at 900-1475

Turbo Features

-twin hydrodynamic journal bearings

-extended tip technology compressor wheel

-available in twin scroll and open flow turbine volute options

-adjustable compressor and turbine housing orientation

-compressor cover recirculation grooves

-optimized compressor inlet geometry

-dual machined compressor cover discharge connection

(v-band or hose bead)

-premachined speed sensor mounting boss


Compressor Specs:

-compressor wheel inducer: 88mm

-compressor inlet: 6.00″

-compressor outlet: 4.21″


Turbine Specs:

-turbine wheel exducer: 99.08mm

-turbine outlet: 5.16mm v-band downpipe

-turbine A/R: T6   0.85


Note: Turbo already comes with a T6 twin scroll 0.85A/R  turbine housing as listed.

 if  you would like a different turbine housing , you must purchase an additional

turbine housing.

Additional information

Weight 40 lbs
