This is a great low pressure turn for a BIG compound set up!

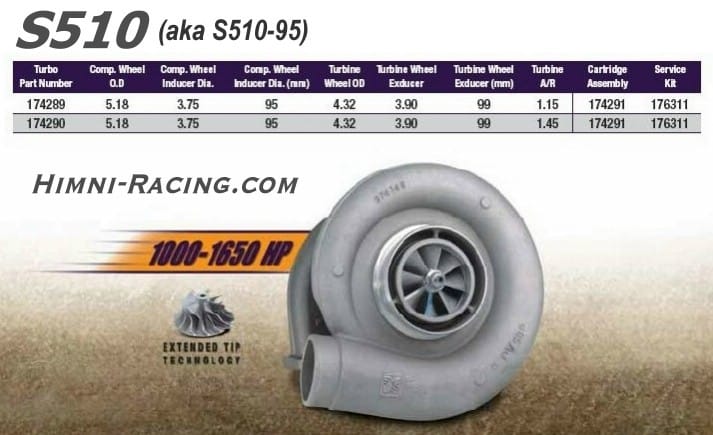

Borgwarner S510 Extended tip technology compressor wheel.

1000-1650 HP Turbo


Turbo Features:

-Twin hydrodynamic journal bearings
 -Twin scroll turbine housing
-Adjustable compressor and turbine housing orientation
-Compressor cover recirculation grooves


Compressor Specs:

Comp. Wheel O.D   5.18

Comp. Wheel Inducer Dia    3.75

Comp. Wheel Inducer Dia (mm)   95mm


Turbine Specs:

Turbine Wheel O.D     4.32

Turbine Wheel O.D (mm)     132

Turbine Wheel Exducer    3.90

Turbine Wheel Exducer (mm)    99

Turbine A/R    1.15A/R

Additional information

Weight 40 lbs
