S476 Race cover

$1,523.47

-

179176

SKU: 298b675e4878 Category:

Description

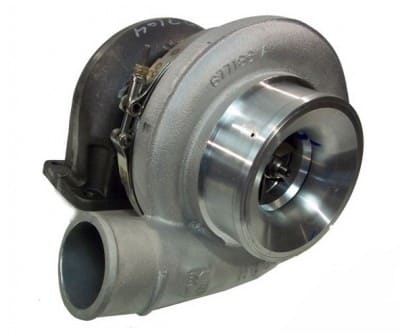

BorgWarner Airwerks S400SX3-76, S476, S400-76, or S376 with 1.10 A/R Twin Scroll Turbine Housing and Race Cover.

This new S400SX3 turbocharger from BorgWarner utilizes the new "J-Type" turbine wheel which outflows and out-responds the previous 87/80mm wheel used.

Rated at 500 to 1150+HP

High-flow S400 model, with compressor flow over 115 lb/min.

Wheel Dimensions:
  • Compressor: 76 mm inducer, 105mm exducer, with exclusive Extended Tip Technology.
  • Turbine: "J-Type87 inducer, 81mm exducer. Cast in Inconel 713 for high-temperature operation.

Housings:

  • Compressor: RACE COVER .66 A/R, with 5.0" hose-type inlet, and 3" Hose type discharge
  • Turbine: T4 1.10 A/R, with 'divided' volute, featuring 'T04-style' turbine inlet flange (3.25"x2.75"), and quick-release v-band discharge flange. Cast in ductile iron.

Additional information

Weight 40 lbs
