IDP 6.0L T4 Complete kit S362SXE



6.0L T4 362

Out of stock

SKU: 300470e45562 Categories: ,

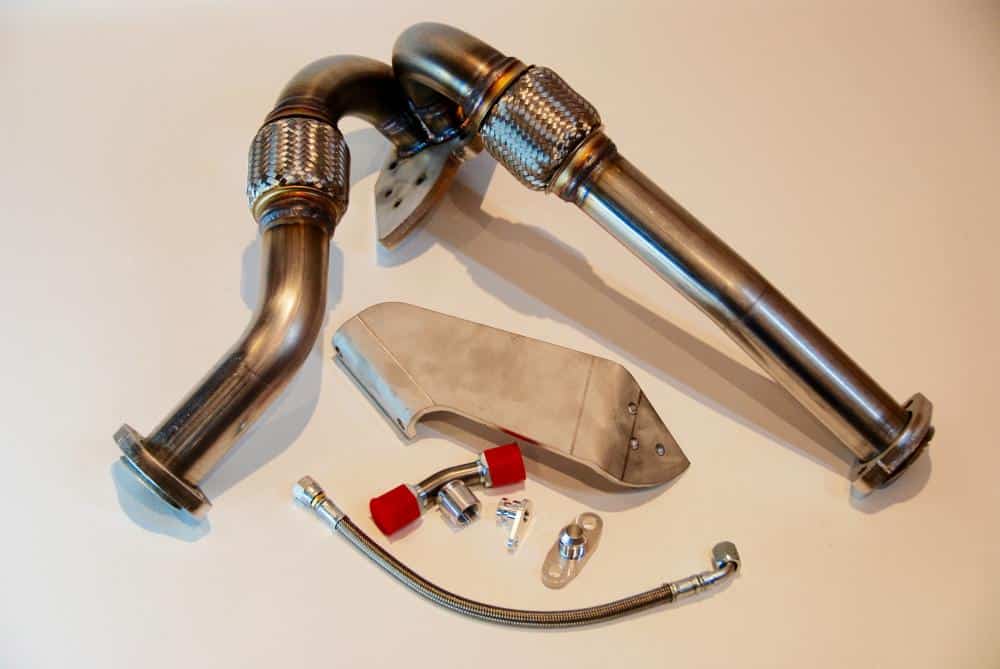

Irate Diesel 6.0 T4 mounting system with 304ss pedestal, collector with bellowed up-pipes, custom machined aluminum oil supply and drain flanges with stainless oil line and hardware for installation.  This system has divided uppipes for faster spool up and this mount will fit any T-4 turbo from an S300 to an S400 turbo, as well as the Garret turbos!

The system will reuse the factory/aftermarket downpipe location.  The S362SXE SHOULD bolt directly up to the down pipe (some OLD MBRP and Flo Pro down pipes wont quite line up)   The Diamond eye 4″ works perfectly)

**03 intakes will need to be modified (crossbar in back cut) for the T4 mount to fit.

When adding fuel upgrades to your 6.0 it is just as important to match the air flow into the engine to maintain efficiency and get the most performance out of your application.  The 362SXE is a great turbo for Stock tuned trucks to 175cc injectors.  The 362SXE will spool up great and make between 450 and 500RWHP on the 6.0L.  This 362SXE has the 68mm turbine stock with billet wheel and 360 thrust already installed and ready to go!

**If you want the larger 74mm turbine just add it in the options! (The 74mm turbine is better suited for 175-190cc injectors.)

Comes with.91 Housing



Additional information

Weight 60 lbs
