Description

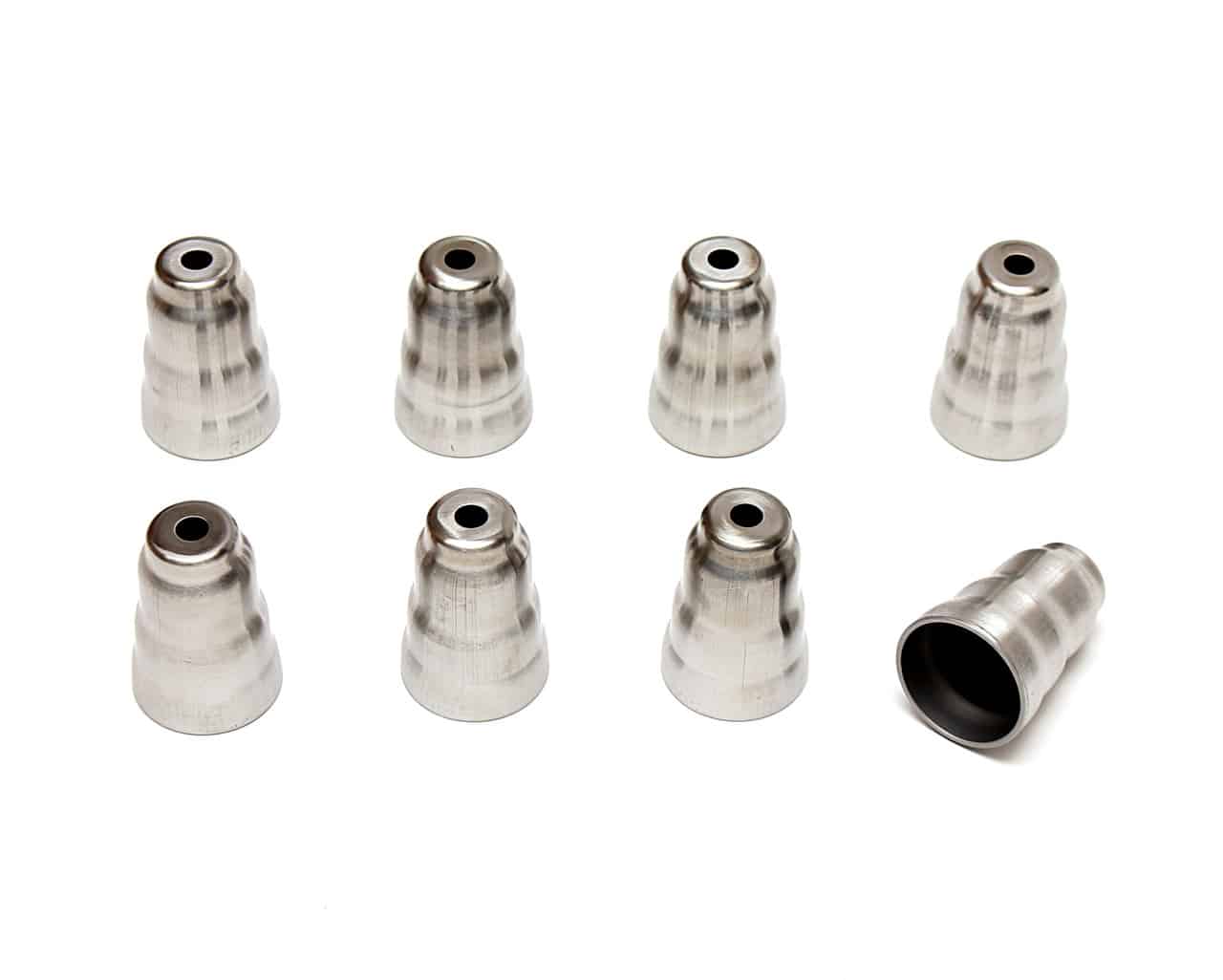

Stainless Steel 304 Alloy Fuel Injector Sleeves
Fits 1994.5-2003 7.3L Powerstroke Diesel Engines
PN – SWF-9F538-7.3SS
– STAINLESS STEEL 304 ALLOY OE STOCK REPLACEMENT –
– 200% STRONGER THAN OEM BRASS SLEEVES –
- Includes 8 Injector Cups
**Using the Correct Sealant: Loctite 620 Retaining Compound
For stainless steel injector sleeves, Loctite 620 High-Temperature Retaining Compound is strongly recommended.
Why Loctite 620?
-
✔ Designed specifically for cylindrical press-fit assemblies
-
✔ Rated for high-temperature diesel engine environments
-
✔ Excellent resistance to fuel, coolant, and oil
-
✔ Prevents sleeve movement under heat cycling
*Standard thread locker or RTV silicone is NOT acceptable and will fail.
Proper Application of Loctite 620
-
Apply a thin, even coat of Loctite 620 to:
-
The outer surface of the injector sleeve
-
The injector bore (light coat only)
-
-
Do not over-apply — excess compound can hydraulic-lock the sleeve during installation
-
Install the sleeve immediately after application
3. Correct Sleeve Installation
-
Use a proper injector cup installation tool to ensure the sleeve is pressed in straight and to the correct depth
-
Never hammer the sleeve into place
-
Ensure the sleeve seats fully and evenly
Misalignment can cause injector damage, sealing failure, or premature sleeve cracking.
4. Cure Time Is Critical
After installation:
-
Allow Loctite 620 to fully cure for a minimum of 24 hours
-
Do not install injectors or add coolant before full cure
⏱️ Rushing this step can compromise the seal and lead to coolant intrusion into the fuel system.
Why Prep Matters on the 7.3 Powerstroke
The 7.3L Powerstroke is known for:
-
High heat cycling
-
Long service intervals
-
Coolant exposure around injector cups
Proper bore prep combined with stainless sleeves and Loctite 620 dramatically reduces:
-
Coolant-in-fuel failures
-
Injector sleeve movement
-
Repeat labor and downtime
Pro Tip
Many professional diesel builders consider stainless steel sleeves with Loctite 620 to be a lifetime fixwhen installed correctly.
