Replace all of the stock components in your engine bay with the Irate Diesel fuel system.
If aging factory parts have let you down or are going to be a problem in the future, then it’s time to get an Irate Fuel system that will give you quality and longevity you can count on for years to come.
The system includes all components and fittings needed to install the system so you wont be lacking any component to upgrade your fuel system.
Systems are modular and can be upgraded if needed in the future. You can upgrade a standard system to a competition system with no major modifications! Simply swap a few fittings and the system will be ready to go.
Features

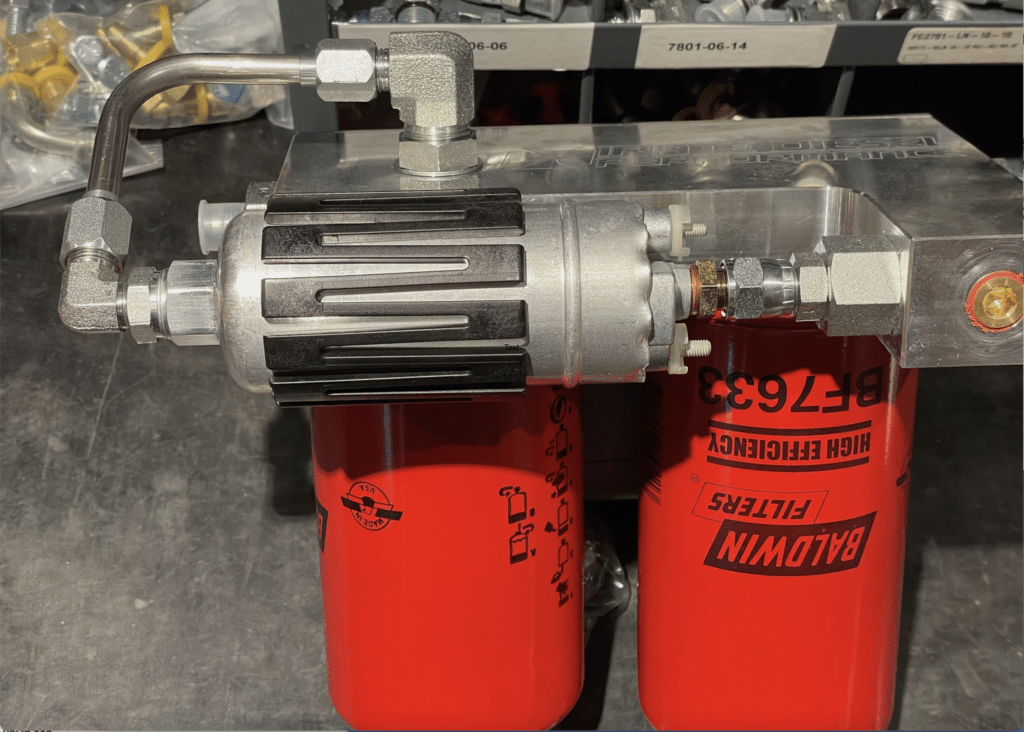

IDP Billet Fuel Manifold

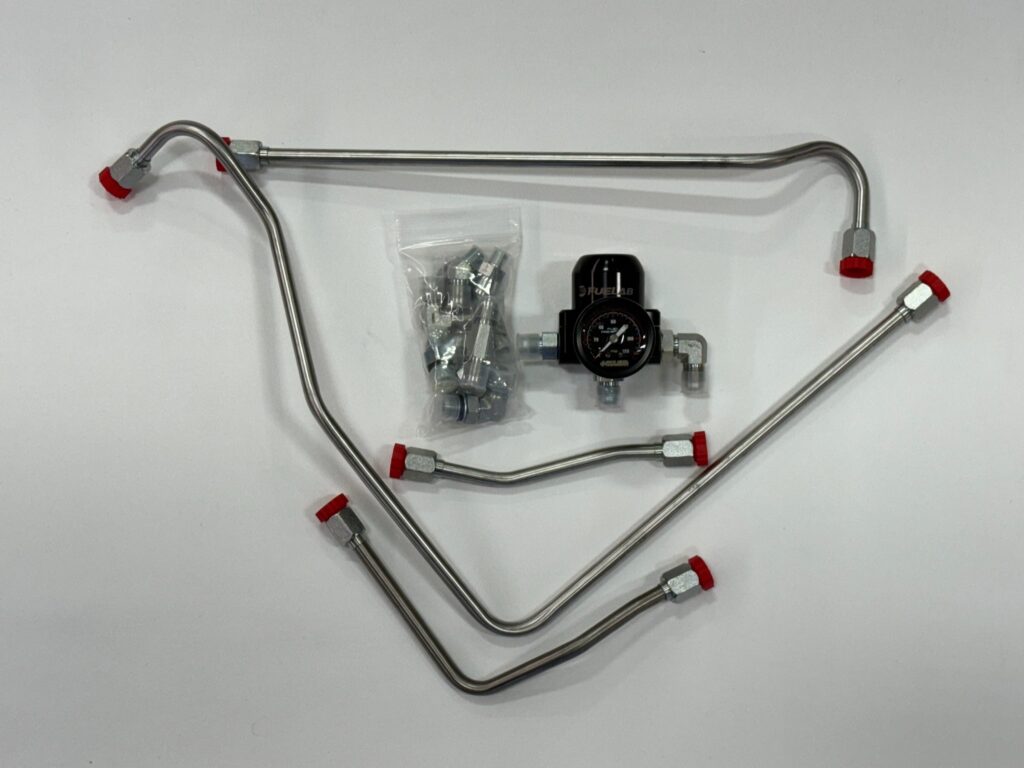

Stainless Regulated return setup
Reliable Bosch Fuel pump
Complete fuel system with all hardware needed for install
Replaces leaking/failing factory components
Can utilize both tanks on 94-97 Truck
High quality push-lok fittings no clamps required
Standard system good for 550hp
Competition system good for over 1000hp dyno proven!

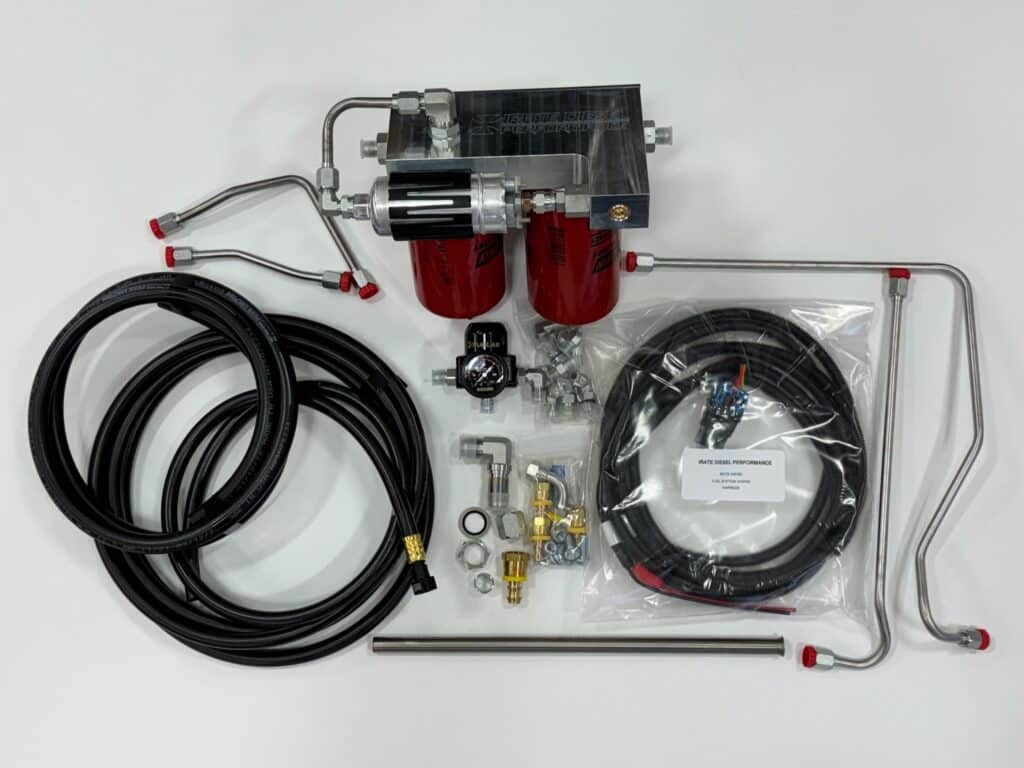

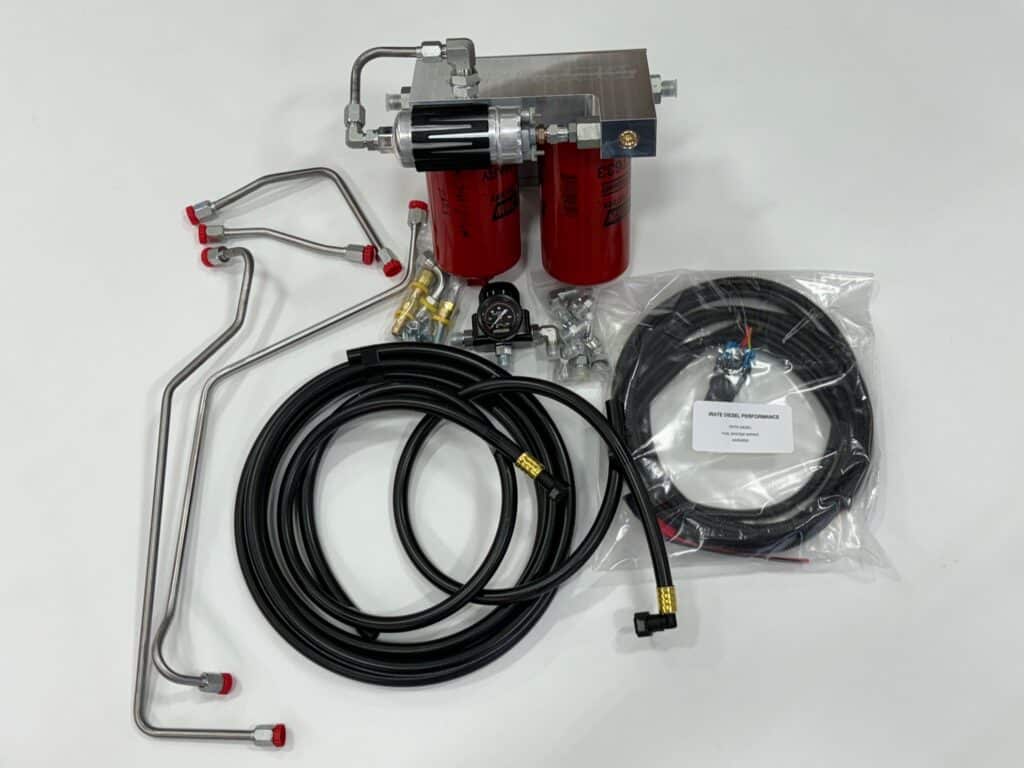

IDP Billet Block with 304ss mounting bracket, BOSCH 464-200 diesel pump, Pushloc hose with quick connects from selector valve to motor and return quick connect from regulator to OEM quick connect below steering shaft. Included is also IDP regulated return system, wiring harness, plug for valley and all JIC fittings needed. Our kit will work with factory turbo setups as well as our T4 mount. This kit includes all parts and pieces necessary for installation on the 94-97 trucks.

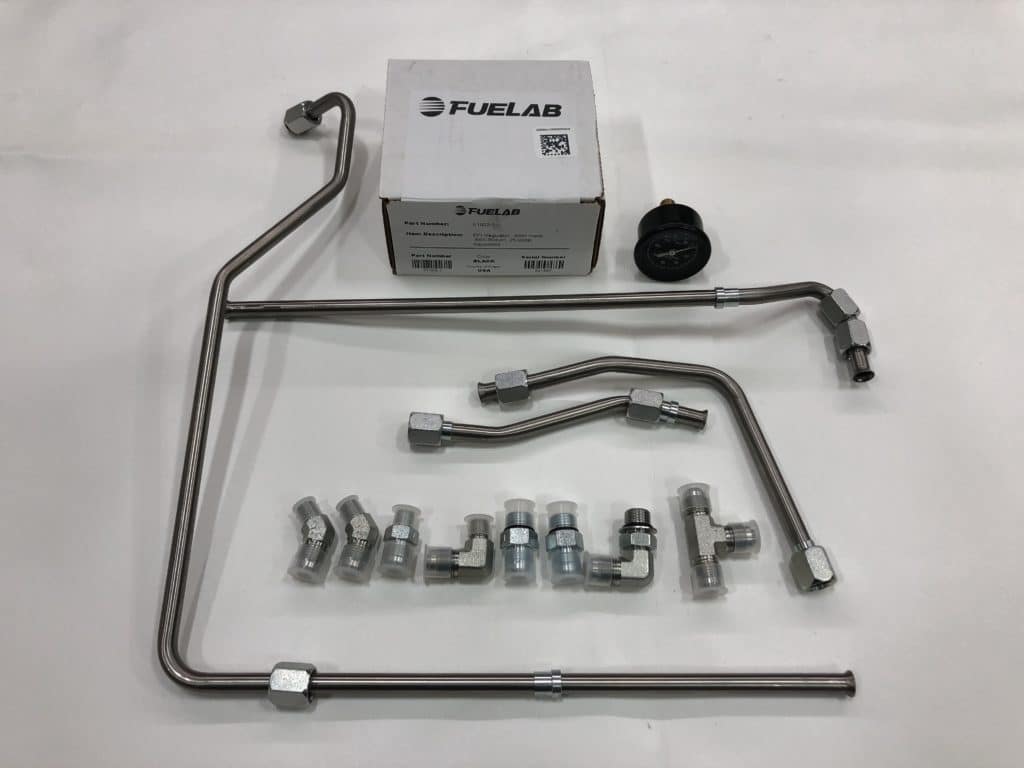

Irate Diesel Standard COMPLETE fuel system. 5/8″ pickup tube, Parker 801-10 line from tank to IDP 304ss fuel bracket, Baldwin filters NEW IDP BILLET filter base ,BOSCH 464-200 fuel pump, 801-8 line to motor, Irate regulated return with Fuelab regulator and liquid filled gauge, 801-6 return line and wiring harness. System is complete from the tank forward and gets rid of all those pesky fuel bowl leaks and in tank pick-up issues. This system uses a water separator before the pump and a final filter after the pump to provide clean water free fuel going to your 7.3L!
I called to get some fuel supply lines for my regulated return kit. Amazing customer service and sold me just the lines I needed to replace my old ones. They shipped them out same day. Can’t wait to get my hands on them!
Theodore W.
★★★★★
Awesome customer service when I called on a weekend late in the evening with an installation question. Product is top of the line and works flawlessly, the question I had was in regards to me modifying it’s operation to my security needs, not a flaw in design or quality
Russell L.
★★★★★
These guys/gals are the best. My fuel pump got cooked, ordered one at noon on a tuesday, they had it to my door the next morning and my truckie was back on the road later that day. 😬 When I called a human answered. 11/10 recommend.
L. Luber
Warranty
***The Bosch pump comes with a ONE year warranty through us, this pump is very robust and has been great for our fuel systems (over 1000 sold with no failures) with almost non existent failures. This is due to the pump design and it is less susceptible to starvation failure than previous pumps!
To retain the ONE year warranty on the pump it is recommended that you replace the OEM selector valve and in tank pick ups with this kit. We have found that these items are falling apart being plastic and worn causing them to not functioning correctly and that leads to 99% of ANY electronic fuel pump failure. This is the case even if you are not having troubles with the mechanical pump as they don’t care about the having a full fuel supply like electric pumps will.
The other option is to go to a larger single tank (Part number F26E) out of a bronco and bypass the selector valve all together with the supply line.
This kit will NOT work on the E series van without modification!
