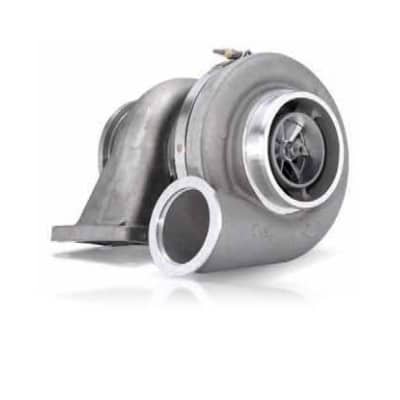

S400SX3-7674

$1,699.00

-

SKU: 872c4c919982 Category:

Description

High-flow S400 model, with compressor flow over 115 lb/min.

This turbo has been tested on our 7.3L and made a 35HP, and 75ftlb improvement over the 467.7 turbo. Our stock head,cam and manifold 7.3L made 665hp and 1200lbft with 350/200 injectors with this turbo.  This is with the cast wheel!! We will have the billet wheel avaliable soon! You can order the turbo with 360 thrust and race cover with 3" slip outlet.




Wheel Dimensions

  • Compressor: 76mm inducer, 105mm exducer, with exclusive Extended Tip Technology.
  • Turbine: 83.5 inducer, 74mm exducer. Cast in Inconel 713 for high-temperature operation.


Housing A/R:

  • Compressor .63, with 5.0" hose-type inlet, and v-band-type discharge.
  • Turbine: T4 .90, 1.10, 1.10, or 1.25 A/R with 'divided' volute, featuring 'T04-style' turbine inlet flange (3.25"x2.75"), and quick-release v-band discharge flange. Cast in ductile iron.

Additional information

Weight 40 lbs
Ceramic coat turbine housing
